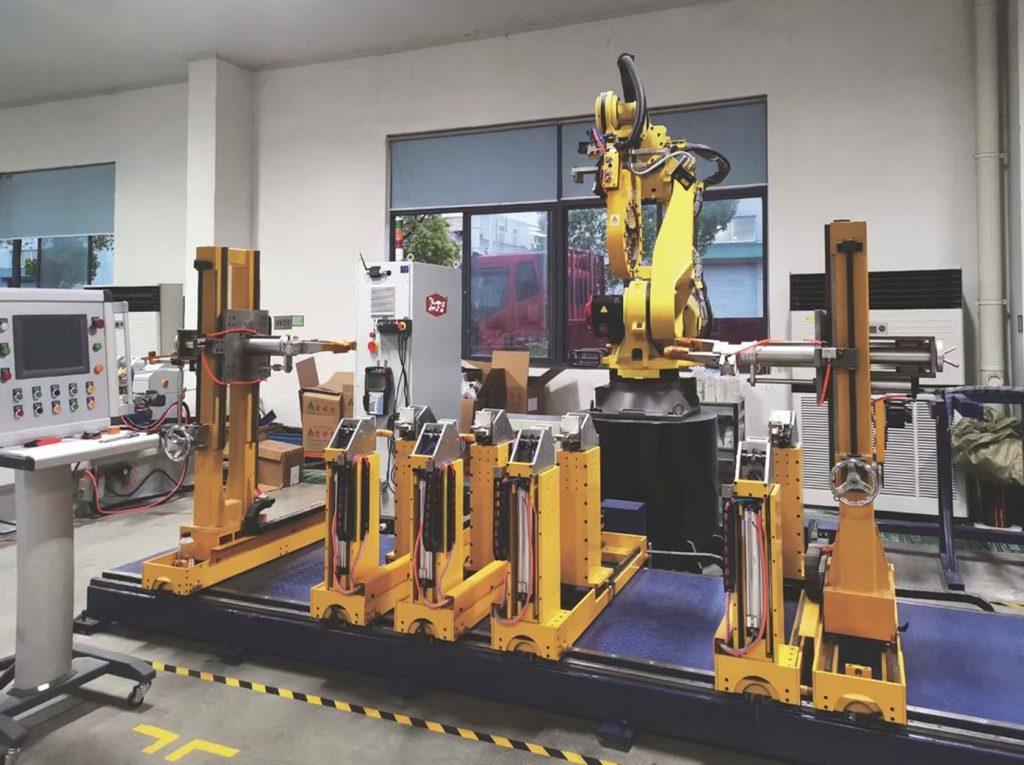

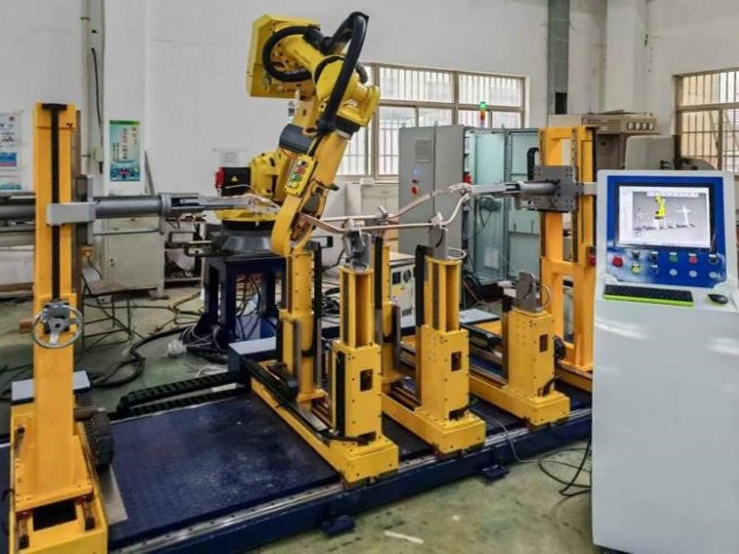

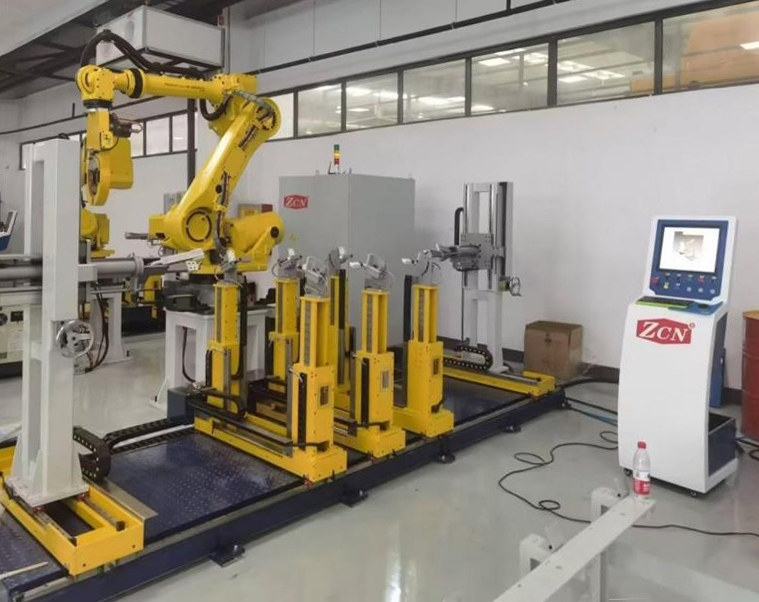

Our Robot Taping Machine sets a new standard for automated insulation wrapping of complex electrical coils. Utilizing a FANUC 6-axis robot enhanced with a dedicated 7th rotation axis for the taping head, it delivers unparalleled precision for both runway-type and spindle-shaped loop-type coils. The system is equipped with a 3D optical scanner for automated coil profiling and trajectory teaching, ensuring the taping head remains perfectly perpendicular throughout the process. With features like real-time tape break detection, constant tension control (10-60N), and adjustable overlap (5-75%), it guarantees consistent, high-quality insulation layering for coils up to 3 meters in length.

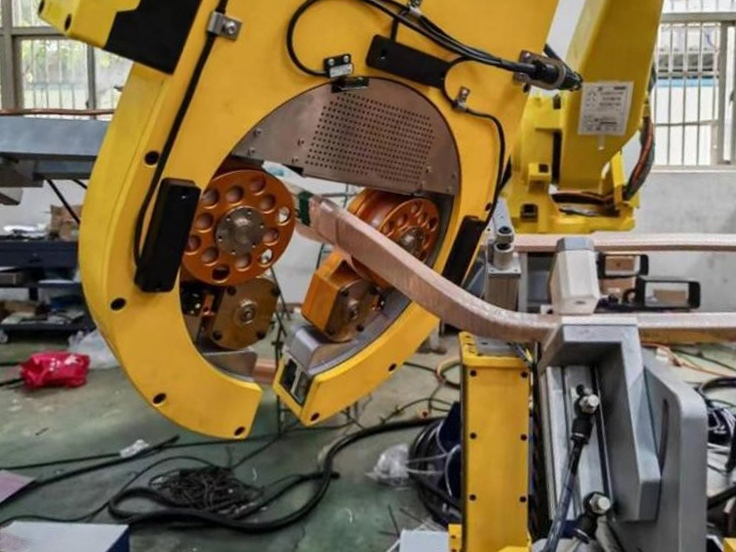

Centers on a Japanese FANUC robot, extended with a 7th axis, enabling complex 3D motions to handle both straight and curved coil sections with consistent accuracy.
Integrated 3D scanner automatically captures coil geometry, calculates the optimal taping path, and stores programs for instant recall, eliminating repetitive manual teaching for repeat orders.
Capable of multi-layer wrapping with programmable overlap and tension. The system accommodates a wide range of coil sizes and cross-sections, ensuring versatility and fault-proof operation.
| Category | Parameter | Specification |
| Control System | Robot Controller | FANUC Native Control Cabinet |
| PLC System | SIEMENS | |
| Human-Machine Interface (HMI) | Full-process Control Display | |
| Robot Core | Model & Brand | FANUC R-2000iC/210L |
| Number of Axes | 6 + 1 (7th axis for head rotation) | |
| Working Range | 3.15 m | |
| Max. Payload Capacity | 210 kg | |
| Taping Performance | Max. Coil Length | 3000 mm |
| Coil Cross-Section | (10-25)mm x (15-60)mm | |
| Overlap Rate Range | 5% to 75% | |
| Overlap Deviation | Linear: <±1mm; Arc: <±2mm | |
| Max. Taping Angle | ±15° | |
| Slope Taping | Supported (Layered) | |
| Tape Handling | Tape Reels per Head | 2 |
| Tape Inner Diameter | 25 mm, 40 mm (Interchangeable) | |
| Tape Max. Outer Diameter | Ø100 mm | |
| Tape Width | 20 mm, 25 mm | |
| Tension Range | 10 – 60 N | |
| Tension Control Mode | Electromagnetic, Constant Full-Process | |
| Reel Radius Detection | Real-time | |
| Fixture & Support | Fixture Control | Pneumatic |
| Adjustability | Height & Angle | |
| End Clamps (Nose Clamps) | 2 (One at each end) | |
| Linear Support Frames | 8 total (4 per side) | |
| Utilities & Environment | Power Supply | 380V, 3-Phase, 15kW Total |
| Compressed Air Requirement | 0.3 – 0.6 MPa | |
| Operating Temperature | 0°C to 40°C | |
| Installation Lifting Requirement | Crane (Capacity ≤5T, Height 3m) |
