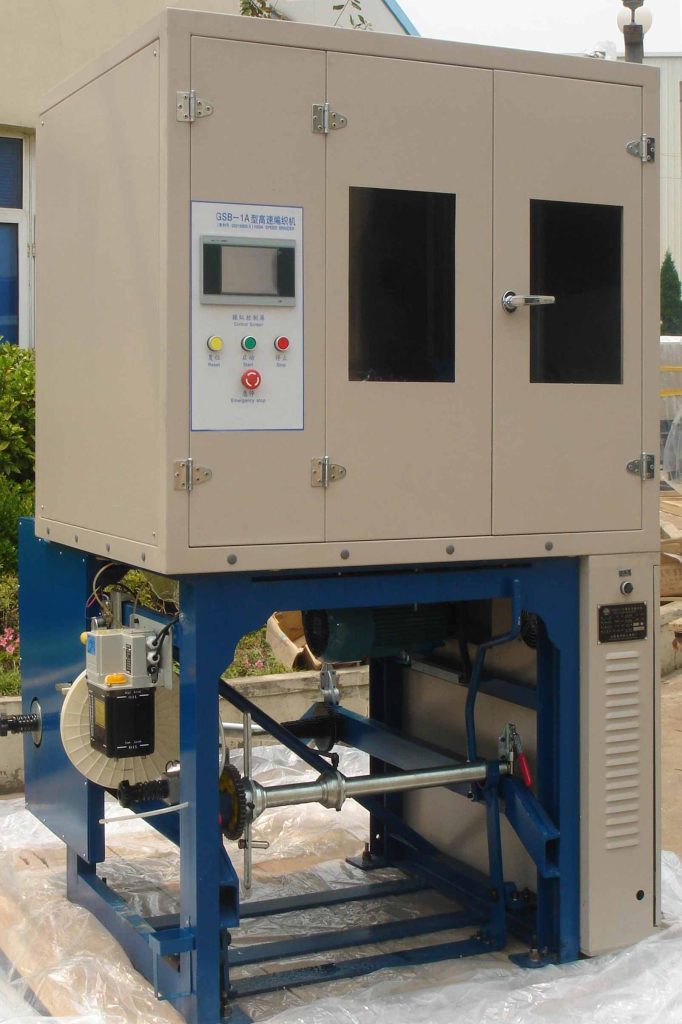

Our High-Speed Braiding Machine integrates advanced drive and control technologies to deliver exceptional performance in wire, cable, or textile braiding applications. It utilizes variable frequency drive (VFD) for stepless speed adjustment and a PLC-based control system with a touch-screen HMI for intuitive operation. Key features include precise and controllable tension adjustment, timed and quantified automatic lubrication, and comprehensive fault protection. This combination ensures reliable, high-quality braiding with complex patterns, making it an ideal solution for demanding industries such as automotive, aerospace, and specialized cable manufacturing.
Engineered for high speed, exceptional precision, and remarkable long-term stability, ensuring consistent output quality even in continuous production runs.
Achieves low energy consumption and reduced noise levels for a more sustainable and comfortable workshop environment.
The intuitive touch-screen control and accessible mechanical design simplify both daily use and routine servicing, reducing operational complexity.
| Name | Technical parameters | |
| HGSB-16A | HGSB-24A | |
| Braiding way | 2 over 2 | 2 over 2 |
| Braiding direction | Vertical | Vertical |
| Number of Bobbins | 16 | 24 |
| Bobbin size | Φ75XΦ22XΦ70 | Φ75XΦ22XΦ70 |
| Bobbin speed | 150 r.p.m. (Max.) | 30-100 r.p.m. |
| Wire material and diameter | Copper wire, 0.08-0.20mm | Copper wire, 0.05-0.18mm |
| Braiding pitch | 3.2-32.5mm or 6.4-65mm | 13.3-134.5mm |
| Max braiding diameter | 14mm | 24mm |
| Main motor power | 2.2KW | 3KW |
| Reel Size | <=800mm | <=800mm |
| Touch Screen | Brand: DELTA | Brand: DELTA |
| PLC | Brand: DELTA | Brand: DELTA |
| Converter | Brand: DELTA | Brand: DELTA |
| Electric Voltage | 380V, 3 Phase | 380V, 3 Phase |
| Outside size | 1560*1450*2230 | 1800*1950*2500 |
| Net weight of machine | 950kg | 1100kg |
