Cold Rolling Mill

Our Cold Rolling Mill is a precision finishing system designed to process hot-rolled copper strip into final, market-ready products at room temperature. It meticulously refines the material’s gauge, surface, and mechanical properties, meeting the exacting standards required for high-end electrical components, connectors, and specialty foils. The mill ensures consistent, high-volume production of strip characterized by exceptional dimensional accuracy, superior surface finish, and enhanced strength, making it an indispensable asset for advanced copper processing.

Highlights

Achieves ultra-thin final dimensions with micron-level accuracy through advanced rolling mechanics and闭环 thickness control systems.

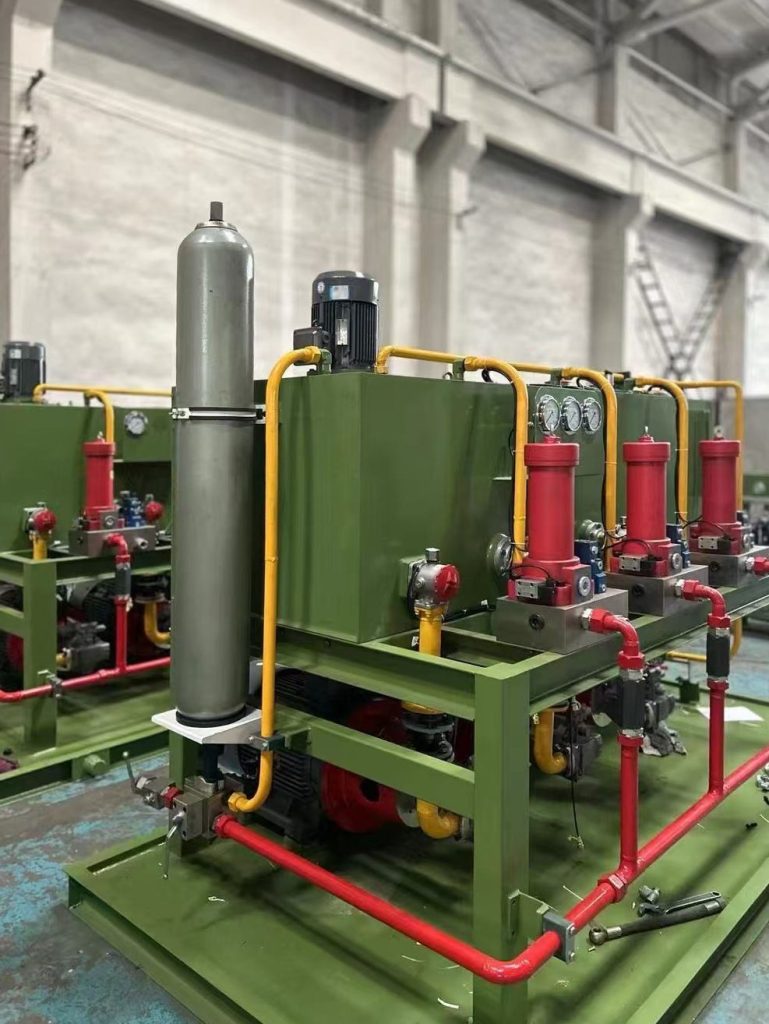

Cold Rolling Mill5

Produces a consistently bright, smooth, and defect-free surface finish, critical for applications demanding optimal conductivity and appearance.

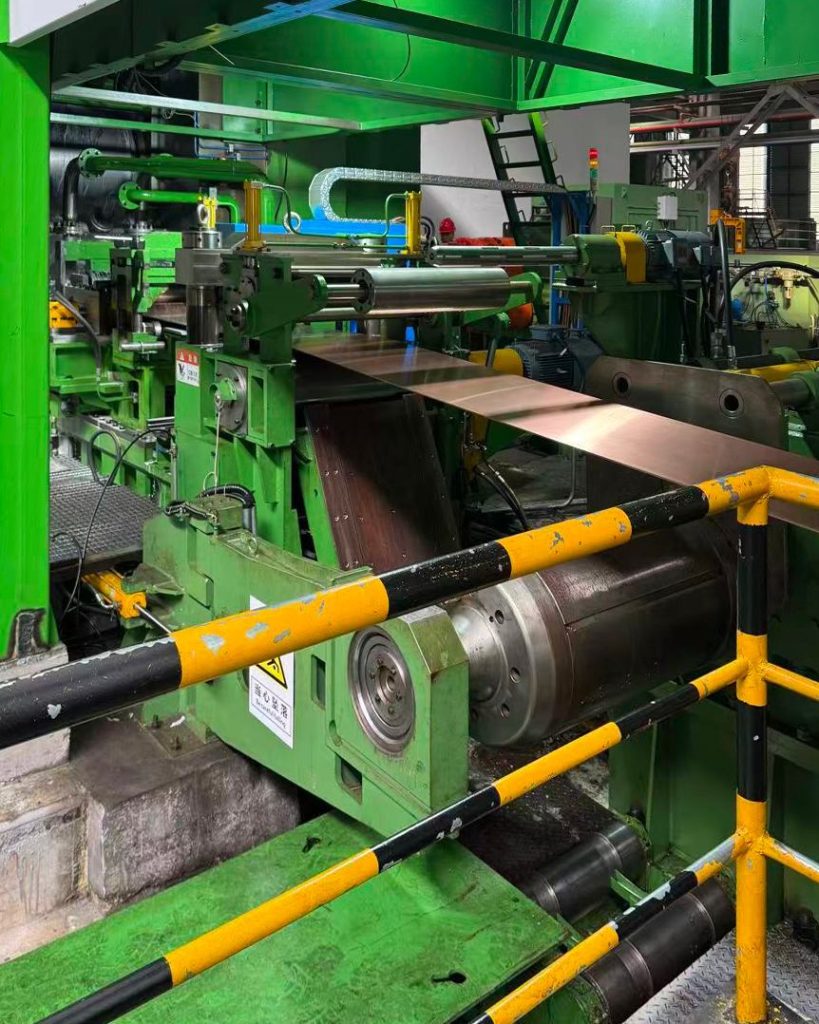

Cold Rolling Mill3

Induces controlled work hardening to significantly increase the strip’s tensile strength and hardness without compromising ductility.

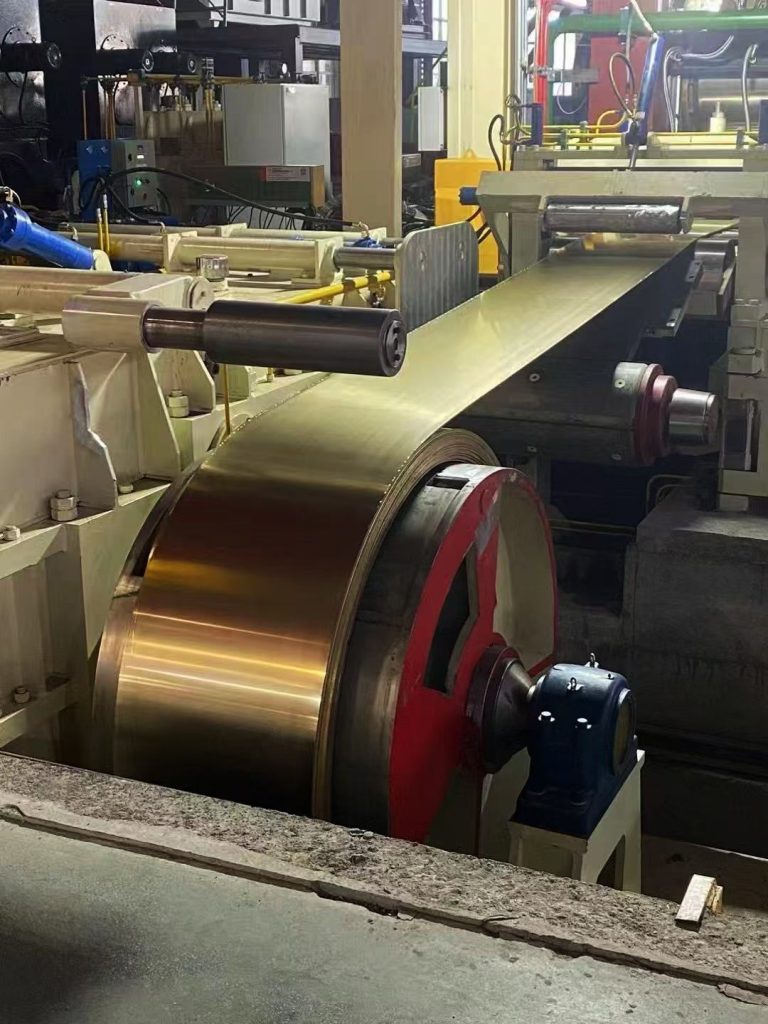

Cold Rolling Mill2

Incorporates sophisticated shape control technology to ensure the output strip is perfectly flat and straight, facilitating downstream processing.

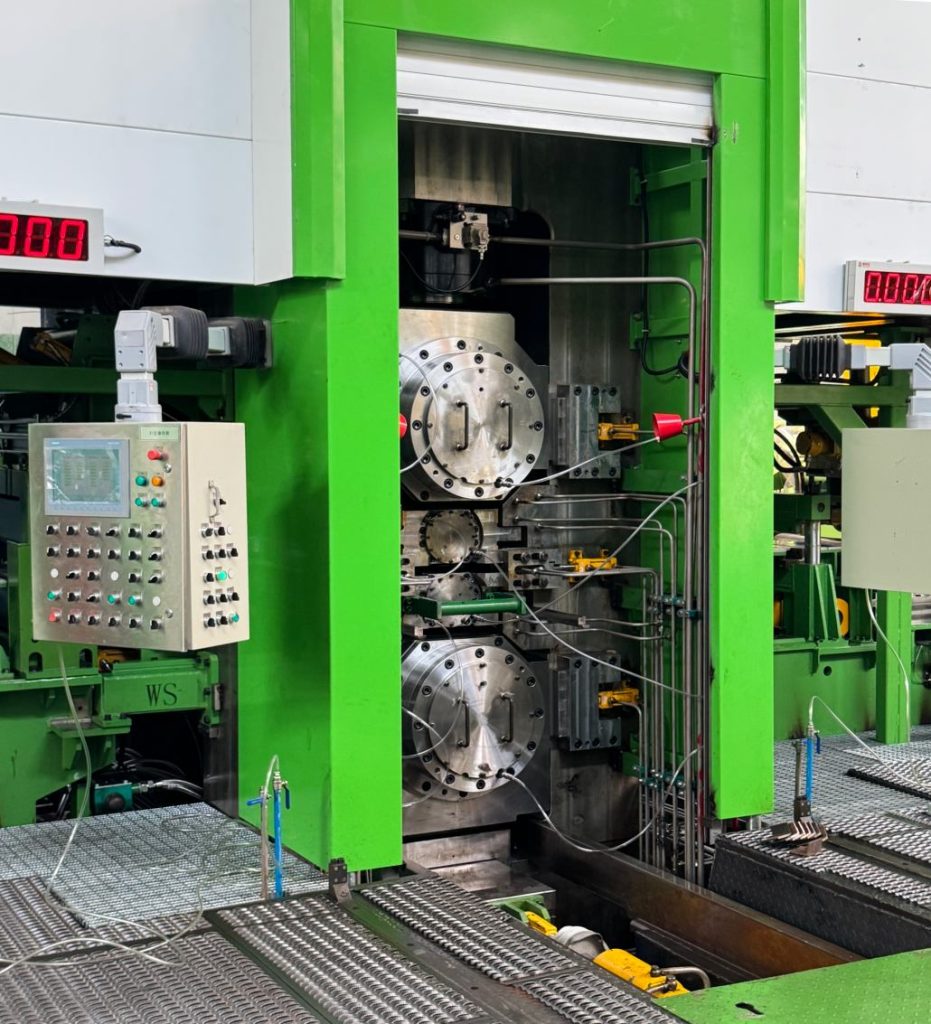

Cold Rolling Mill1

Specification

Equipment 4Hi Breakdown Rolling Mill 4Hi Intermediate rolling mill



6Hi fine rolling mill:



Incoming strip size 400-650*16-22mm 400-650* max 5mm 400-650*max0.5mm
Finish strip size 400-650*min2.5mm 400-650*min0.2mm 400-650*min0.05mm
Rolling Speed V=0~150~300m/min V=0~300~480m/min V=0~300~600m/min

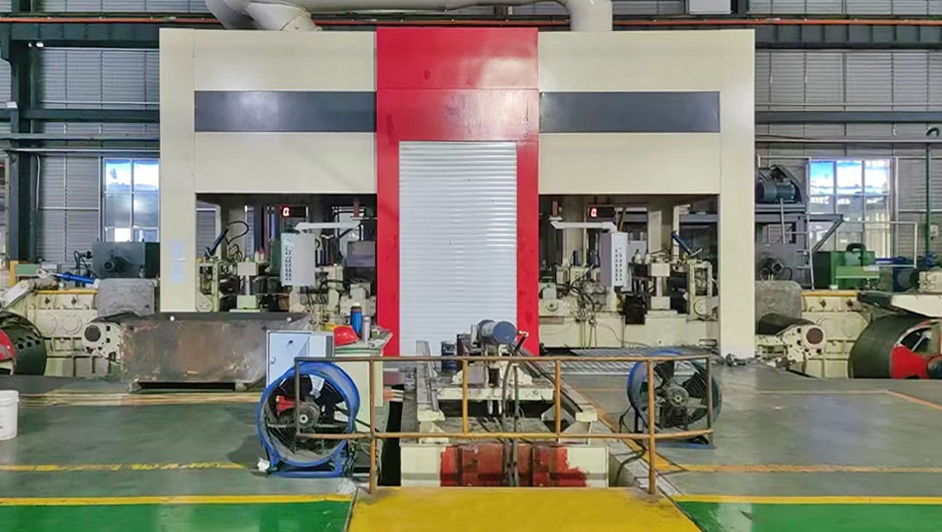

Cold Rolling Mill4
